Mathematica Program for Single Transferable Vote and Ranked Choice Voting

Scenario

• Number of Seats = 5
• Candidates
  • Orange Party: O1, O2, O3, O4, O5
  • Green Party: G1, G2, G3, G4, G5
• Number of Votes = 500
• Votes for Orange Candidates = 265
• Votes for Green Candidates = 235

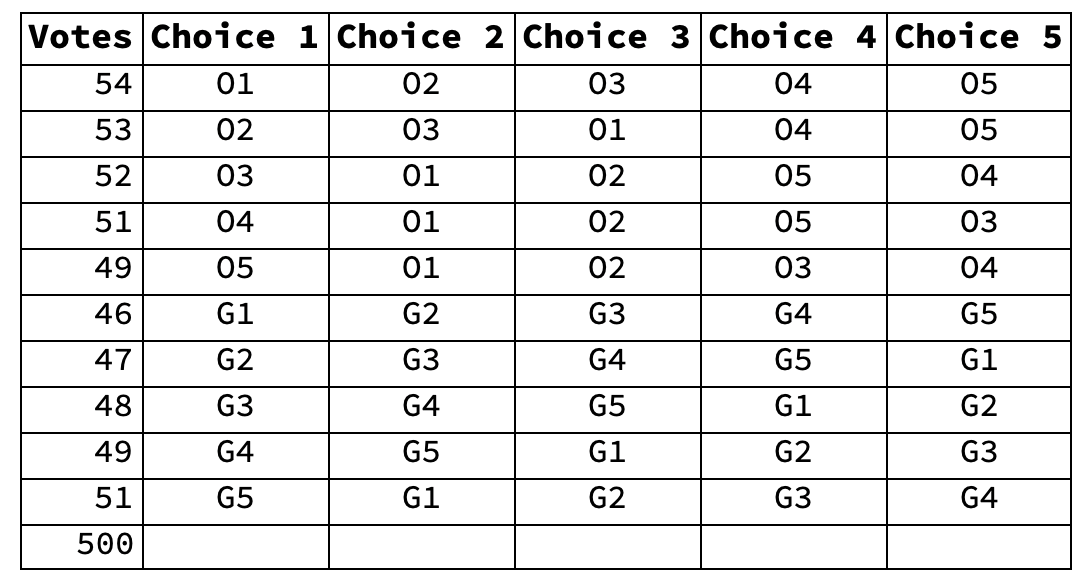

• Ballot Spreadsheet
  •

Initialization Program

• This program
  • initializes the Ballot Spreadsheet
  • initializes the variables nbrofseats and can
  • calculates the quota

• (* Initialize Variables *)
• nbrofseats = 5;
• (* Candidates *)
• can ={O1, O2, O3, O4, O5, G1, G2, G3, G4, G5};
• (* Initialize the Ballot Spreadsheet.
•   Columns: ballot id, votes, first choice,  second choice,  third choice,  etc
•   The number after each ballot is the number of ballots. So,  for example,  there are
•   54 ballots with preference list O1, O2, O3, O4, O5.  *)
• ballots = Join[
• Table[PadRight[{1, 1, O1, O2, O3, O4, O5}, 10], 54],
• Table[PadRight[{2, 1, O2, O3, O1, O4, O5}, 10], 53],
• Table[PadRight[{3, 1, O3, O1, O2, O5, O4}, 10], 52],
• Table[PadRight[{4, 1, O4, O1, O2, O5, O3}, 10], 51],
• Table[PadRight[{5, 1, O5, O1, O2, O3, O4}, 10], 49],
• Table[PadRight[{6, 1, G1, G2, G3, G4, G5}, 10], 46],
• Table[PadRight[{7, 1, G2, G3, G4, G5, G1}, 10], 47],
• Table[PadRight[{8, 1, G3, G4, G5, G1, G2}, 10], 48],
• Table[PadRight[{9, 1, G4, G5, G1, G2, G3}, 10], 49],
• Table[PadRight[{10, 1, G5, G1, G2, G3, G4}, 10], 51]];
• (* Calculate the Droop Quota *)
• quota = Floor[(Length[ballots]/(nbrofseats + 1))] + 1;
• (* Make the Ballot Spreadsheet the first entry in a sequence of spreadsheets *)
• ball = {ballots};

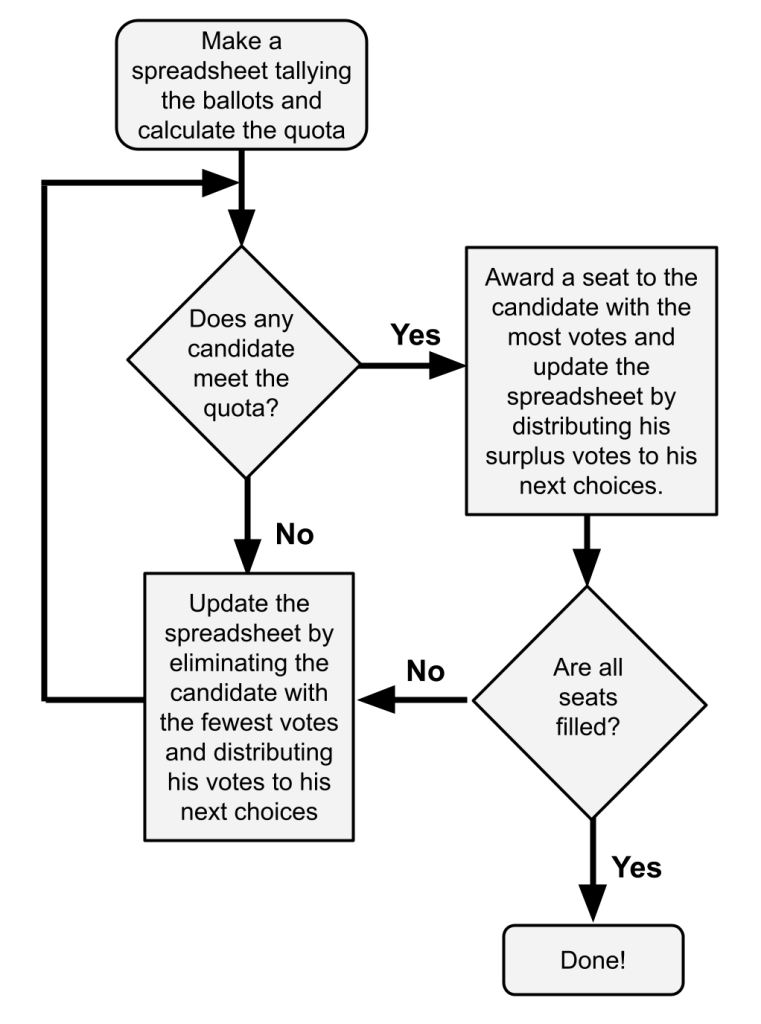

Flowchart

Outline

• (*
• Start of Program
  • Make ballot spreadsheet
  • Calculate quota
• Start of Loop
  • The program scans the Ballot Spreadsheet to see whether any candidate’s votes meet or exceed the quota.
    • If so:
      • Process Top-Vote-Getter
        • The top vote-getter wins a seat and the Ballot Spreadsheet is updated as follows:
          • The winner’s surplus votes are transferred to all his next choices.
            • (surplus votes = winner’s votes minus the quota)
          • The winner is erased from the spreadsheet.
        • The program checks whether all seats are filled.
          • If so, it goes to End of Program
          • If not, it goes to Process Lowest-Vote-Getter
    • If not:
      • Process Lowest-Vote-Getter
        • The lowest vote-getter is eliminated and the Ballot Spreadsheet is updated as follows:
          • All the eliminated loser’s votes are transferred to his next choices.
          • The loser is erased from the spreadsheet.
• End of Loop
  • Return to Start of Loop
• End of Program
  • Prints results
• *)

Program

• n=1; winner = 0; votes = 0; surplus=0; ProcessLoserY1N0 = 0;
• winnerlist = List[]; loserlist = List[]; winloss = List[];
• Do[  (* BEGIN DO LOOP  *)
  • If[Total[ball[[n]][[All,3]]]==0,Print[“No More Candidates”]; Break[]];
  • {winner,votes,surplus} = topwinner[ball[[n]],can,quota];
  • If[winner > 0, (* if winner *)
    • (* Process winner *)
    • AppendTo[winnerlist,winner];
    • AppendTo[winloss,(winner 10)];
    • balltmp1 = DistributeWinnerSurplus[ball[[n]],winner,surplus];
    • balltmp2 = EliminateCandidate[balltmp1,winner];
    • ball = Join[ball,{Null}];
    • n = n + 1;
    • balltmp3 = Select[balltmp2,#[[3]] + #[[4]] + #[[5]] + #[[6]] + #[[7]] + #[[8]] + #[[9]] + #[[10]] > 0&];
    • ball[[n]] = balltmp3;
    • If[nbrofseats == Length[winnerlist],
      • Print[“All Seats Filled”];
      • Break[]
      • ]; (* end if nbrofseats == *)
    • ProcessLoserY1N0 = 1;
  • , (* else if no winner  *)
    • ProcessLoserY1N0 = 1;
  • ]; (* end if winner  *)
  • If[ProcessLoserY1N0 == 1, (* if process loser  *)
    • loser =bottomloser[ball[[n]],can,quota];
    • If[loser > 0, (* if loser > 0  *)
      • AppendTo[loserlist,loser];
      • AppendTo[winloss,(loser 10)+1];
      • balltmp1=EliminateCandidate[ball[[n]],loser];
      • balltmp2 =Select[balltmp1,#[[3]] + #[[4]] + #[[5]] + #[[6]] + #[[7]] + #[[8]] + #[[9]] + #[[10]] >0&];
      • ball = Join[ball,{Null}];
      • n = n+ 1;
      • ball[[n]] = balltmp2;
    • ];  (* end if loser > 0  *)
    • ProcessLoserY1N0 = 0;
  • ];  (* end if process loser  *)
• , {100}];  (* END DO LOOP  *)
• Print[“Winners: “, winnerlist];

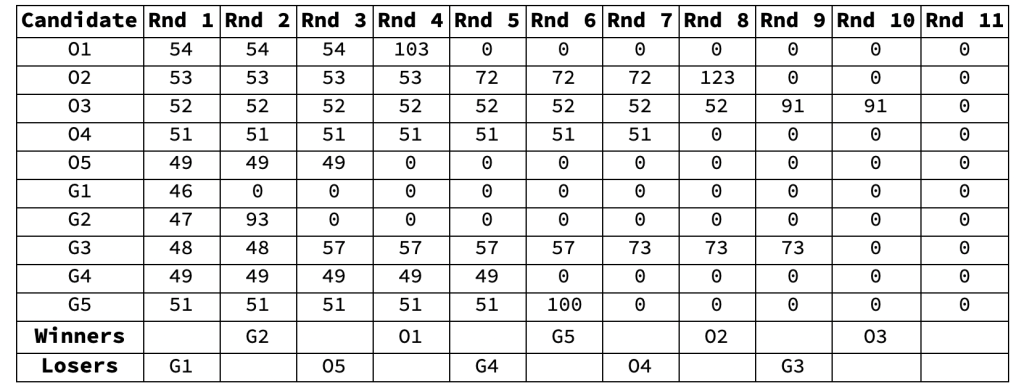

Summary and Rounds

• Number of Seats = 5
• Number of Votes = 500
• Candidates
  • Orange Party: O1, O2, O3, O4, O5,
  • Green Party : G1, G2, G3, G4, G5
• Quota = (500 / (5 + 1)) + 1 = 84
• Winners: G2, O1, G5, O2, O3

Subroutines

• Subroutine topwinner
• (*
• Winner = the top vote-getter who exceeds quota
•  plus the number of his votes and the surplus.
• Winner = 0 if no candidate exceeds quota.
• *)
• topwinner[ball_,can_,quota_] :=
• Module[{voten,winner=0,votes=0,surplus=0,topscore = 0},
• topscore = Max[Table[Total[Select[ball,#[[3]] == n&][[All,2]]],{n,can}]];
• Do[voten =Total[Select[ball,#[[3]] == n&][[All,2]]];
  • If[voten>=quota && voten >=topscore,
    • winner =n;
    • surplus = voten-quota;
    • votes = voten;
    • Break[]
  • ],
• {n,can}];
• {winner,votes,surplus}
• ];

• Subroutine bottomloser
• (*
• Bottomloser = the lowest vote-getter who fails to exceed quota
• Bottomloser = 0 if no candididate fails to exceed quota
• *)
• bottomloser[ball_,can_,quota_] :=
• Module[{voten =0,votesbycan=0,minvote=0,output = 0},
• votesbycan = List[];
• Do[voten =Total[Select[ball,#[[3]] == n&][[All,2]]];
  • If[voten >0,AppendTo[votesbycan,{n,voten}]],
• {n,can}];
• minvote = Min[votesbycan[[All,2]]];
• If[minvote>quota,output = 0,
• output =First[Select[votesbycan,#[[2]] == minvote&][[All,1]]];
• output]]

• Subroutine EliminateCandidate
• (*
• Subroutine eliminates can2del from the ballot spreadsheet
• *)
• EliminateCandidate[ball_,can2del_] :=
• Module[{balltmp = List[],pre,core,pos,output},
• If[can2del > 0, (* Begin If can2del *)
  • Do[
    • pre =Take[ball[[n]],2];
    • core =Drop[ball[[n]],2];
    • If[Length[Select[core,#==can2del&]] >0, (* Begin if length *)
      • pos =Extract[{1}][Flatten[Position[core,can2del]]];
      • core =Join[Take[core,pos-1],Take[core,pos-Length[core]],{0}];
    • ];   (* End if length *)
    • AppendTo[balltmp,Join[pre,core]],
  • {n,Length[ball]}];  (* End Do Loop *)
  • output =balltmp
• , (* Else if can2del  > 0 *)
  • output = ball]
• ;(* End if can2del  > 0 *)
• output
• ];

• Subroutine DistributeWinnerSurplus
• (*
• Subroutine distributes winner’s surplus votes to next choices
• *)
• DistributeWinnerSurplus[ball_,winner_,surplus_] :=
• Module[{record=0,newrecords,multiplier=0},
• multiplier =N[surplus/Total[Select[ball,#[[3]] == winner&][[All,2]]]];
• newrecords = List[];
• Do[
  • record =Select[ball,#[[3]] == winner&][[r]];
  • record[[2]] = record[[2 ]]multiplier;
  • AppendTo[newrecords,record],
• {r,Length[Select[ball,#[[3]] == winner&]]}]; (*  Do End *)
• Join[newrecords, Select[ball,#[[3]] != winner&]]
• ]

Mathematica Program for Largest Remainder

• (* Number of Seats *)
  • nbrofseats = 10;
• (* Election results for candidates 1, 2, 3, … *)
  • can = { {1,463,0,0},{2, 426, 0,0},{3,111,0,0}};
    • (* Format of can ={candidate id,votes,seats, remainder} *)
• (* Constants indicating locations of fields in can brackets *)
  • fid = 1; fvotes = 2; fseats = 3; fdec = 4;
• totalvotes = Total[can[[All,fvotes]]];
• quota = totalvotes/nbrofseats;
• nbrofparties = Length[can];
• (* Calculate number of seats for each party and remainder *)
  • Do[
    • can[[n,fseats]]=QuotientRemainder[can[[n,fvotes]],quota][[1]];
    • can[[n,fdec]]=N[QuotientRemainder[can[[n,fvotes]],quota][[2]]],
    • {n,nbrofparties}];
• (* Calculate remaining number of seats to be filled *)
  • seatsneeded =nbrofseats- Total[can[[All,fseats]]];
• (* Add remaining seats to parties with highest remainders *)
  • can = ReverseSortBy[can,Last];
  • Do[
    • can[[n,fseats]] +=1,
    • {n,seatsneeded}];
    • can = SortBy[can,First];
• (* Print results *)
  • Do[
  • Print[“Party “,can[[n,fid]], “: “, can[[n,fseats]],” seats”],
  • {n,nbrofparties}];
  • Print[“Total  : “,Total[can[[All,fseats]]],” seats” ];
    • Party 1: 5 seats
    • Party 2: 4 seats
    • Party 3: 1 seats
    • Total  : 10 seats

Mathematica Program for Highest Average

• (* Number of seats *)
  • nbrofseats = 10;
• (* Election results for candidates 1, 2, 3, … *)
  • can = { {1, 463, 463, 0}, {2, 426, 426, 0}, {3, 111, 111, 0}};
    •  (* Can data items = {party identifier, number of votes, running score, number of seats}*)
• (* Constants indicating the location of data items within the can brackets *)
  • fid = 1; fvotes = 2; fscore = 3; fseats = 4;
• nbrofparties = Length[can];
• (* Set method to 1 for D’Hondt or 2 for Sainte-Lague  *)
  • method = 1;
  • (* Print[“Round “,0 ,”: “,can]*)
• (* Loop through the rounds, one at a time *)
  • Do[
  •  (* Quit if all seats have been filled *)
    •  If[Total[can[[All, fseats]]] == nbrofseats, Goto[end]];
  •  (* Find the (first) winner of the current round *)
    •  id = First[Select[can, #[[fscore]] == Max[can[[All, fscore]]] &]][[1]];
  •  (* Increment the winner’s total seats *)
    •  can[[id, fseats]] += 1;
  •  (* Compute the winner’s score for the next round *)
    •  can[[id, fscore]] =  N[can[[id, fvotes]]/( method  can[[id, fseats]] + 1)];
  •  (* Print[“Round “,n ,”: “,can];*)
  •  Label[end],
  •  {n, nbrofseats}]
• (* Print Results *)
  • Do[
  •   Print[“Party “, can[[n, fid]], “: “, can[[n, fseats]], ” seats”],
  •   {n, nbrofparties}];
  • Print[“Total  : “, Total[can[[All, fseats]]], ” seats” ];
    • Party 1: 5 seats
    • Party 2: 4 seats
    • Party 3: 1 seats
    • Total  : 10 seats
